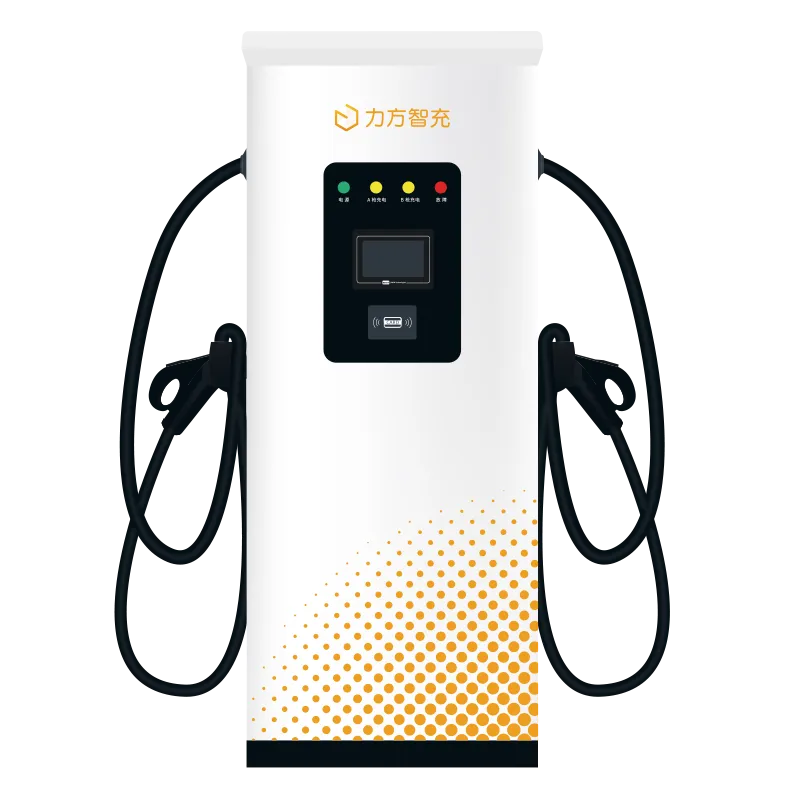

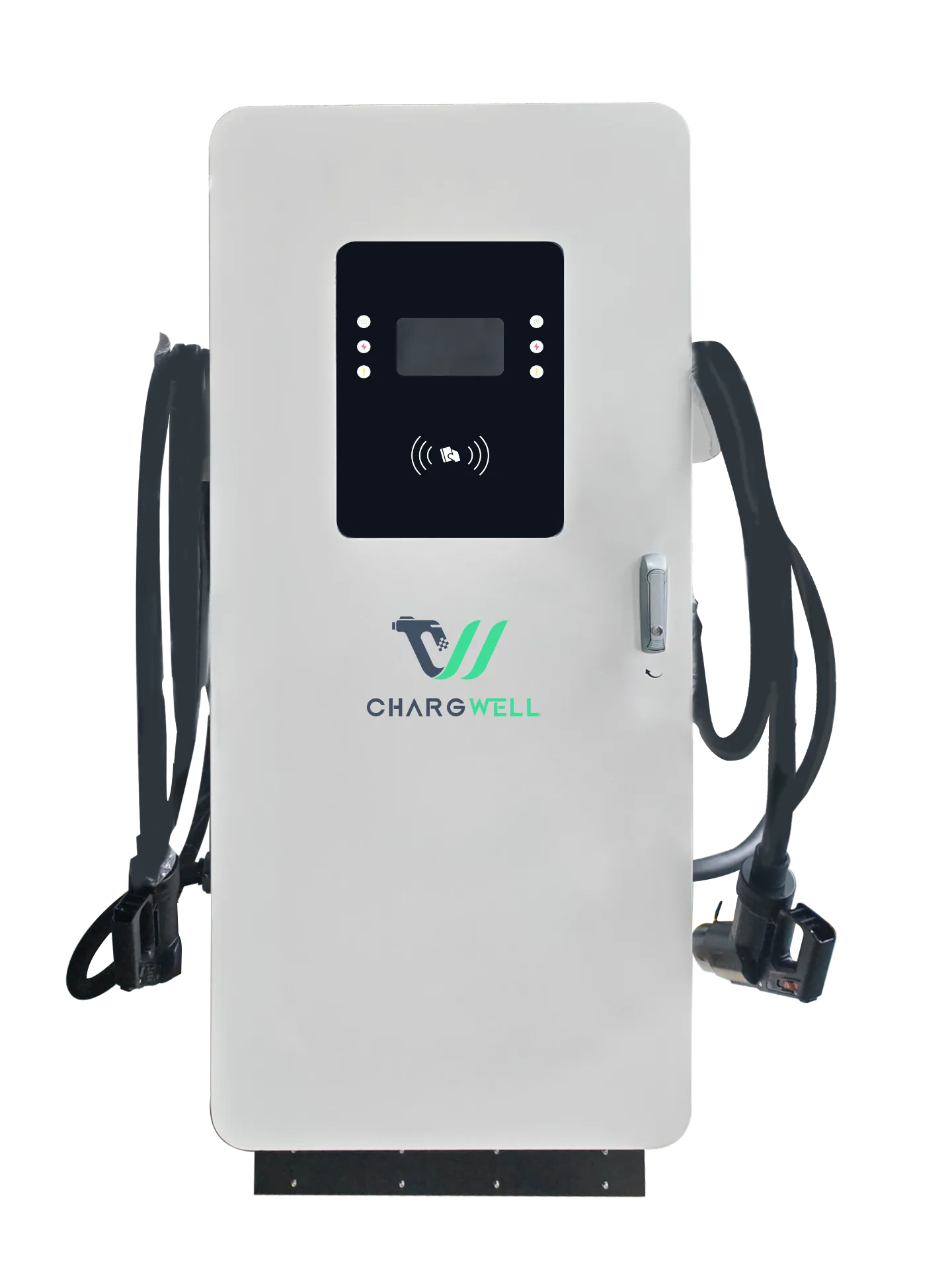

LF120 DC Fast Charger

Name: Fast charging DC stations for electric cars (EVs)
Brand: ChargWell
SKU: LFGD30GD30/ LFGD60GD60/ LFGD90GD90

The LF120 GB/T standard DC Fast charger, manufactured by ChargWell, is widely used in China. This model is ideal for public charging locations such as car parks, fleet depots, and commercial businesses. The 120kW DC integrated charging station is compatible with most electric vehicles, ensuring fast and efficient charging of a variety of vehicles. Its dual-gun design can charge two electric vehicles simultaneously, reducing overall charging time for drivers and maximizing charging station availability. The LF120 is also designed to be smart and user-friendly. LF120 features an interactive touch display with user-friendly instructions and EV charging status information. The display also has an intuitive billing system so users can easily pay for charging.

Wholesale Inquiry

ADVANTAGES

5m charging cable(7m optional)

RFID/APP and POS optional

Support customzing logo and language

Cable management system

Key Features

Flexibility

Support RFID, APP, and POS machines; just choose the best way to pay for charging.

180kW Ultra maximum output capacity

It has a 1000V 250A output capacity, is compatible with 400V and 800V platform EV charging, and supports 180kW output.

Safe&Reliable

Certified to CE standard, comprehensive electrical protection measures, with a standard 2-year warranty.

Remote Update&Diagnostics

Supported by ChargWell. Charge Cloud+APP SaaS system, reduce operation and maintenance costs.

SPECIFICATION DETAILS

Model	LFGD30GD30/ LFGD60GD60/ LFGD90GD90	Input Voltage	400Vac± 10%, 50/60Hz, 3Phase+N+PE
Output Voltage	150~1000Vdc	Output Power	60kW/120kW/180kW
Output Current	250A+250A(MAX)	Stand-by Power	＜50W
Efficiency	≥95%	Protection	Short circuit, Overload, Over temperature, Over current, Over and under voltage, Leakage, Insulation, Lightning protection, Surge, Static electricity, Withstand voltage, Grounding
Connectivity	Ethernet&4G&WiFi	Authorization	APP&RFID, Pos machine optional
Interface	7-inch touch screen, LED indicator, Emergency stop button	Protocol	OCPP 1.6J
Cooling	Forced-air cooling	Cable Length	≥5m(customizable)
