AC-BOAN161
Rainproof & Dustproof | Eco-friendly & Attractive Appearance
Wholesale Inquiry| Model | AC-BOAN161 |
|---|---|
| Category | Technical Specifications |

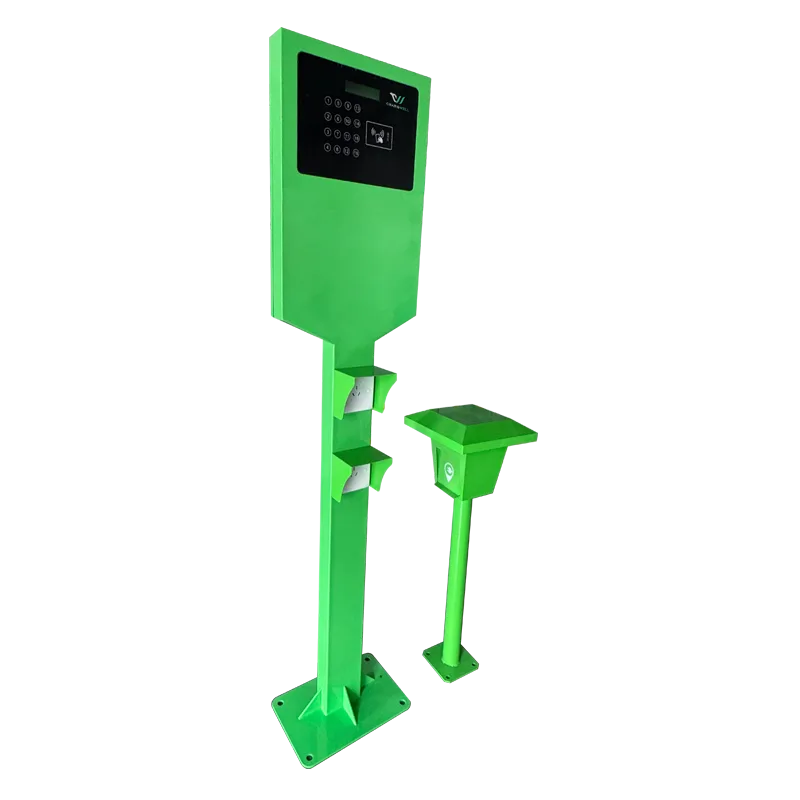

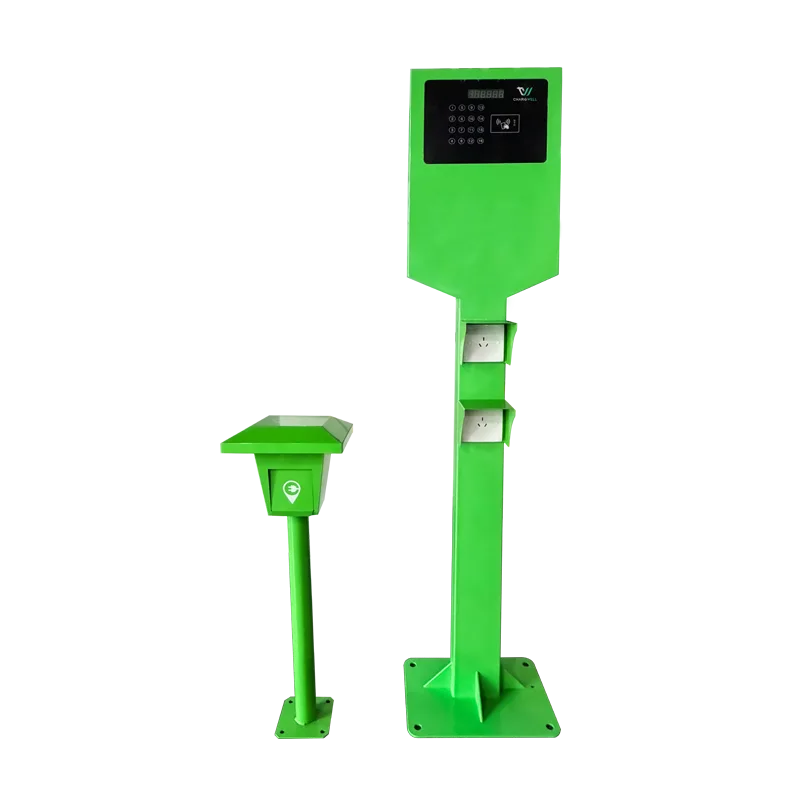

| Product Name | Outdoor 16-Channel Smart Pedestal Charging Pile |
| Model No. | AC-BOAN161 |
| Dimensions (Main Unit) | 320mm×1415mm×50mm, Base: 300mm×200mm |
| Dimensions (Compact Unit) | 235mm×235mm×730mm, Base: 120mm×120mm |
| Payment Methods | Card Swipe / WeChat Pay / Alipay |
| Housing Material | Metal housing with spray plastic coating process |
| Operating Voltage | 160VAC–280VAC |
| Output Ports | 16 Channels |
| Max Total Load Power | 8000W |
| Max Output Power per Single Port | 900W |
| Operating Temperature Range | -20°C ~ 50°C |
| Operating Humidity Range | Relative Humidity ≤95% |
| Waterproof Rating | IP55 |
| Flame Retardant Grade | PCB adopts FR4 fiberglass substrate, flame retardant grade V0 |
| Earth Leakage Protection Current | 30mA |
| Short-Circuit Protection Current | 40A |
| Overload Protection Parameters | 4A load per single port; total load 36A |
| Temperature Monitoring & Alarm Rules | Report every 30 minutes; immediate alarm if temperature change exceeds 2°C; real-time alarm when temperature over 60°C; stop all charging tasks immediately when temperature exceeds 85°C |
| Under-Voltage Protection | 160VAC |
| Over-Voltage Protection | 280VAC |
| Network Connectivity | 4G Full Netcom |
