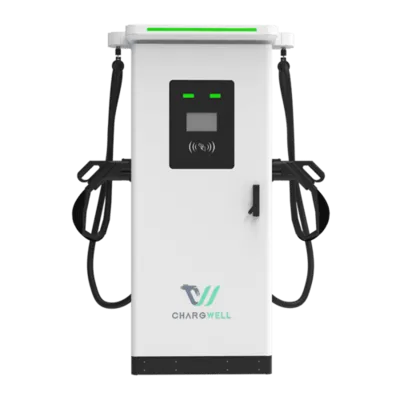

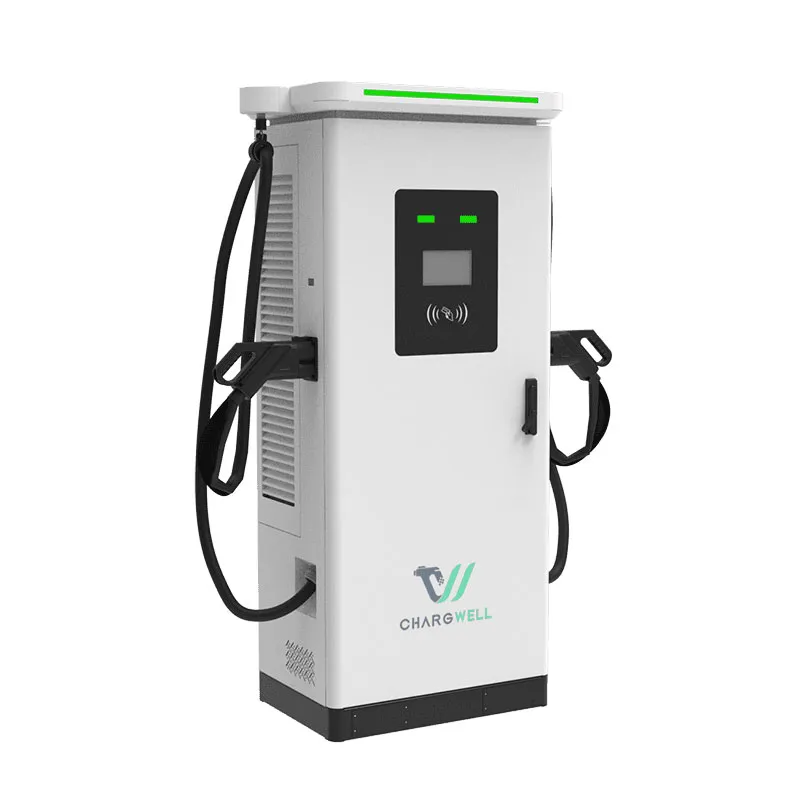

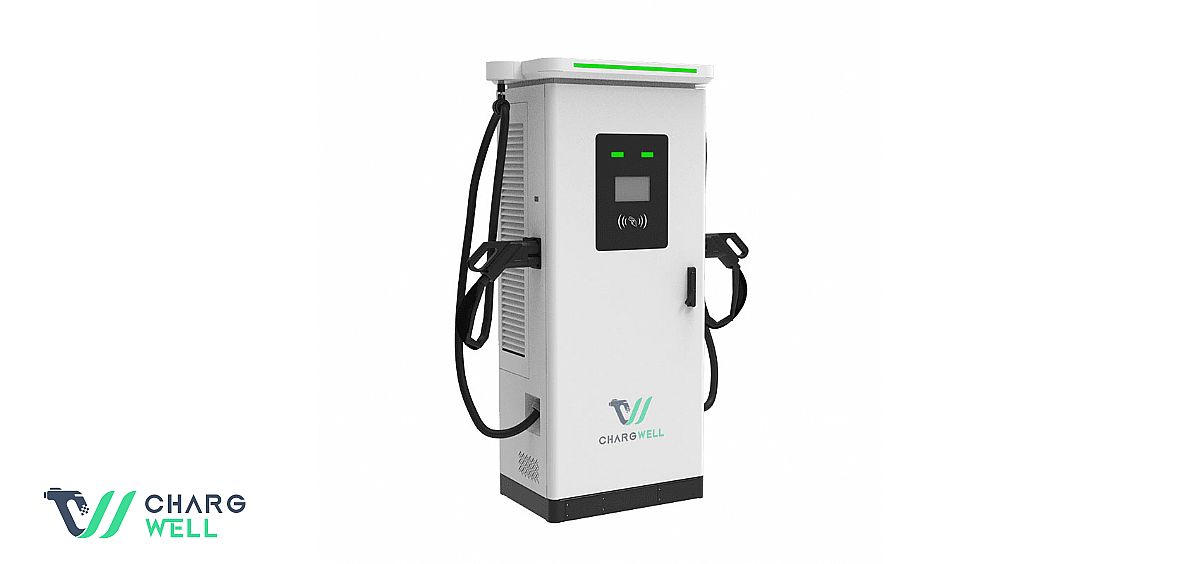

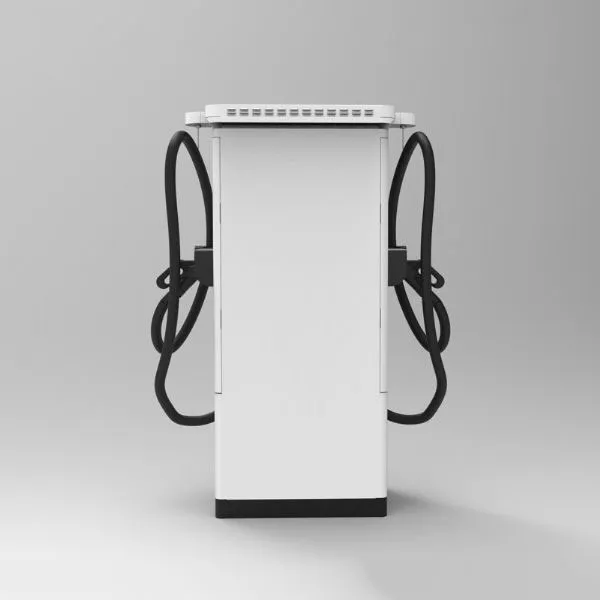

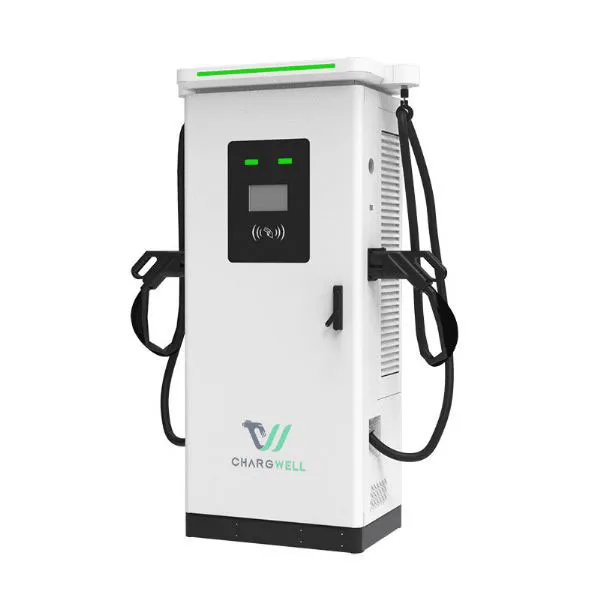

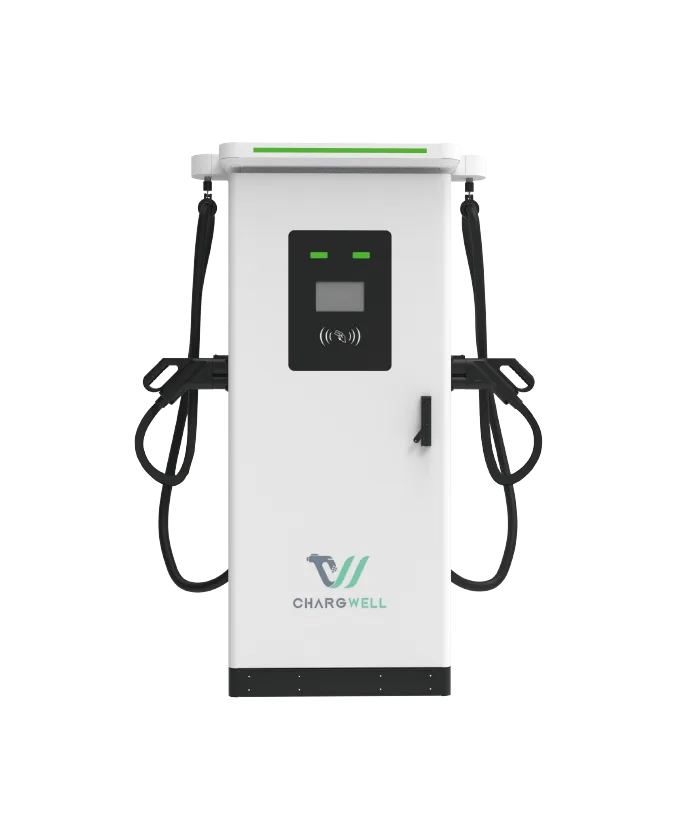

CW01 DC Fast Charger

Name: Public DC Fast Chargers for Electric Vehicles (EV)
Brand: ChargWell
SKU: CW01C230C230/ CW01C260C260/ CW01C290C290

CW01 DC Fast Charger is a public, commercial DC charging station that seamlessly integrates with any OCPP 1.6J platform. Its user-friendly and intuitive design simplifies the charging process, featuring a convenient cable management system, flexible payment options, and customizable charger colors, appearance, and logo. Thus, your charging business will stand out as truly unique.

Wholesale Inquiry

ADVANTAGES

60-180kW output capacity

Ethernet&4G communication

Easy to install and maintain

IP55&IK10 for outdoor installation

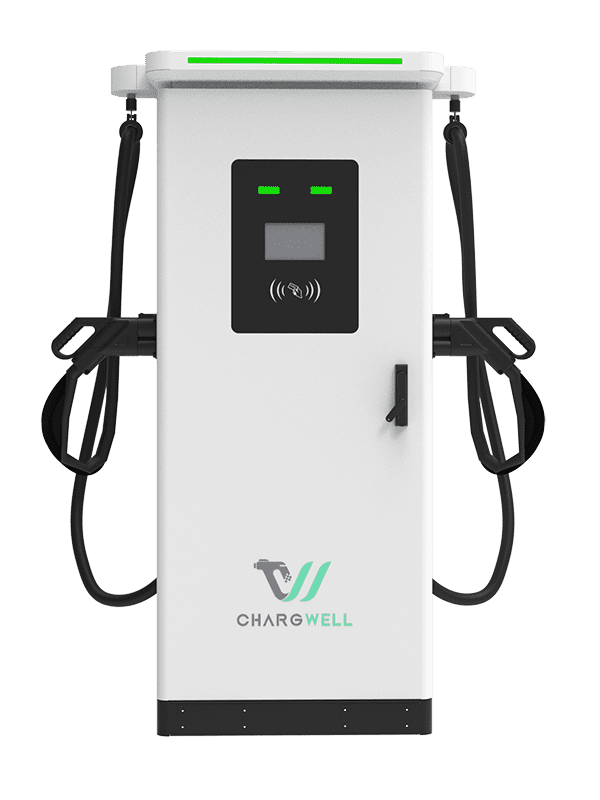

Key Features

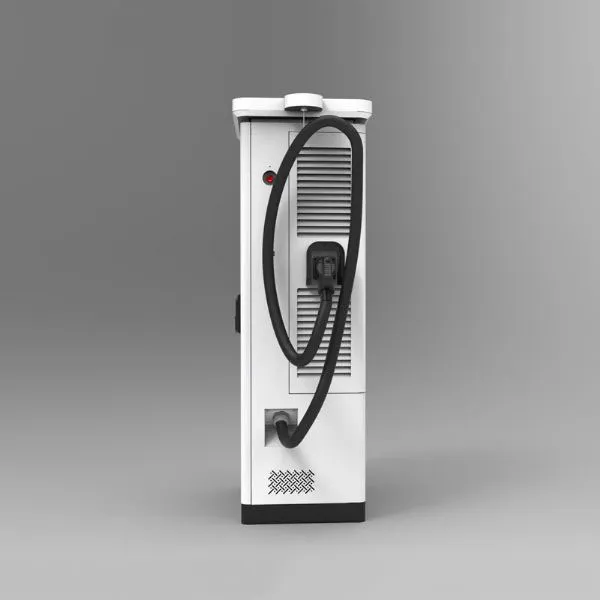

Cable Management System

The cable management system is user-friendly in design, allowing for more convenient use of charging cables.

Flexibility

Support RFID, APP, and POS machines; just choose the best way to pay for charging.

180kW Ultra maximum output capacity

Contains 1000V 250A output capacity, is compatible with 400V and 800V platform EV charging, and supports 180kW output.

Safe&Reliable

Certified to CE standard, comprehensive electrical protection measures, with a standard 2-year warranty.

Easy to install&Service

Once placed into position, maintenance can be done by just one qualified person

SPECIFICATION DETAILS

Model	CW01C230C230/ CW01C260C260/ CW01C290C290	Input Voltage	400Vac± 10%, 50/60Hz, 3Phase+N+PE
Output Voltage	150~1000Vdc	Output Power	60kW/120kW/180kW
Output Current	250A+250A(MAX)	Stand-by Power	＜50W
Connectivity	Ethernet&4G	Interface	7-inch touch screen, LED indicator, Emergency stop button
Protocol	OCPP 1.6J	Cable Length	≥5m(customizable)
