AC-BOAH21-P
Compact Size | High Power
Wholesale Inquiry| Model | AC-BOAH21-P |
|---|---|
| Category | Technical Specifications |

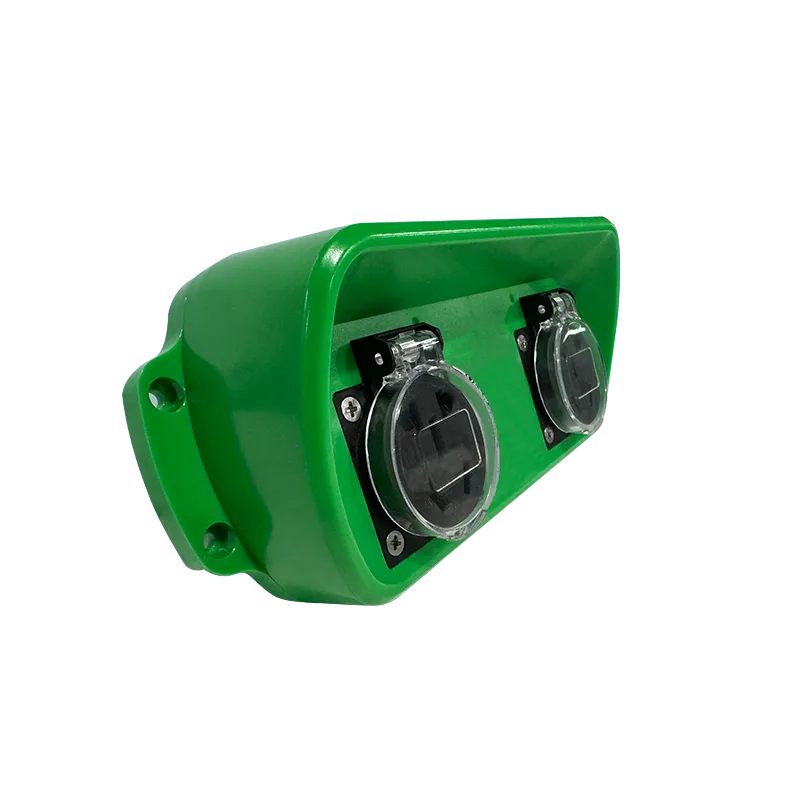

| Product Name | Outdoor 2-Channel High-Power Smart Charging Pile |
| Model No. | AC-BOAH21-P |
| Dimensions | 220mm × 104mm × 70mm |
| Payment Methods | Card Swipe / WeChat Pay / Alipay |
| Housing Material | ABS Plastic Enclosure |
| Operating Voltage | 160VAC–280VAC |
| Output Ports | 2 Channels |
| Max Total Load Power | 7000W |
| Max Output Power per Single Port | 3500W |
| Operating Temperature Range | -20°C ~ 60°C |
| Operating Humidity Range | Relative Humidity ≤95% |
| Waterproof Rating | IP55 |
| Flame Retardant Grade | PCB adopts FR4 fiberglass substrate, flame retardant grade V0 |
| Earth Leakage Protection Current | 30mA |
| Short-Circuit Protection Current | 40A |
| Overload Protection Parameters | 16A load per single port; total load 32A |
| Temperature Monitoring & Alarm Rules | Report every 30 minutes; immediate alarm if temperature change exceeds 2°C; real-time alarm when temperature over 60°C; stop all charging tasks immediately when temperature exceeds 85°C |
| Under-Voltage Protection | 160VAC |
| Over-Voltage Protection | 280VAC |
| Network Connectivity | 4G Full Netcom |
Suitable for spaces with limited area requiring flexible installation, as well as centralized charging facilities for express logistics.
