AC-BOAN101-P / AC-BIAN101
Multi-Protection | Intelligent Monitoring
Wholesale Inquiry| Model | AC-BOAN101-P / AC-BIAN101 |
|---|---|
| Category | Technical Specifications |

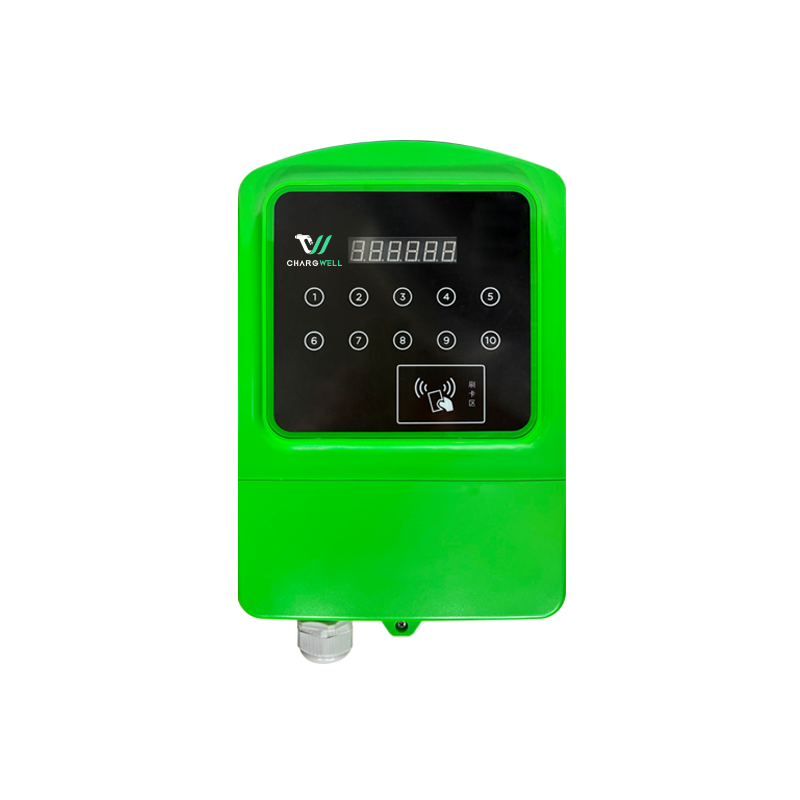

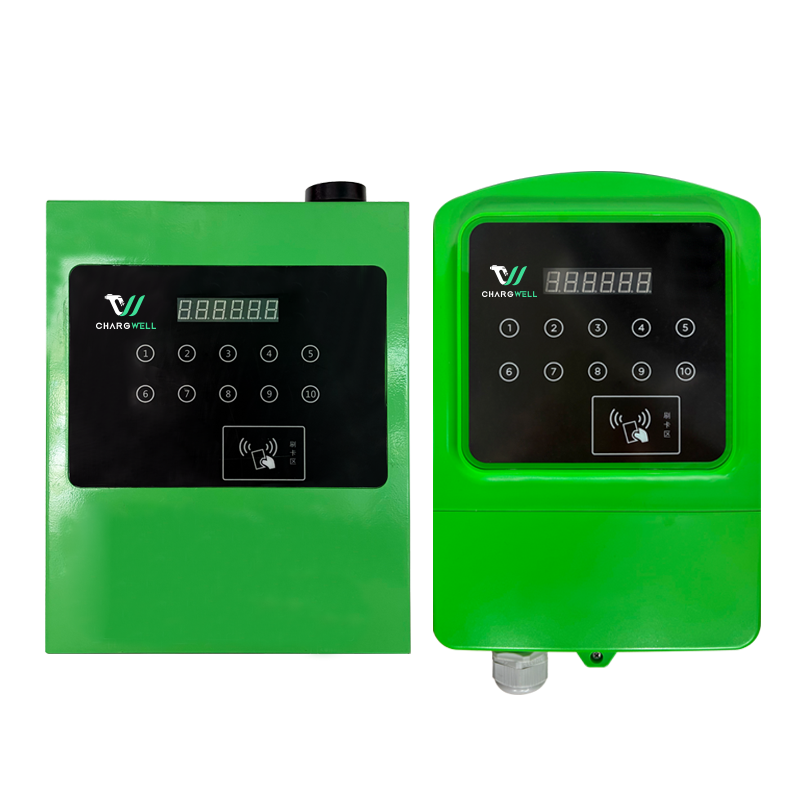

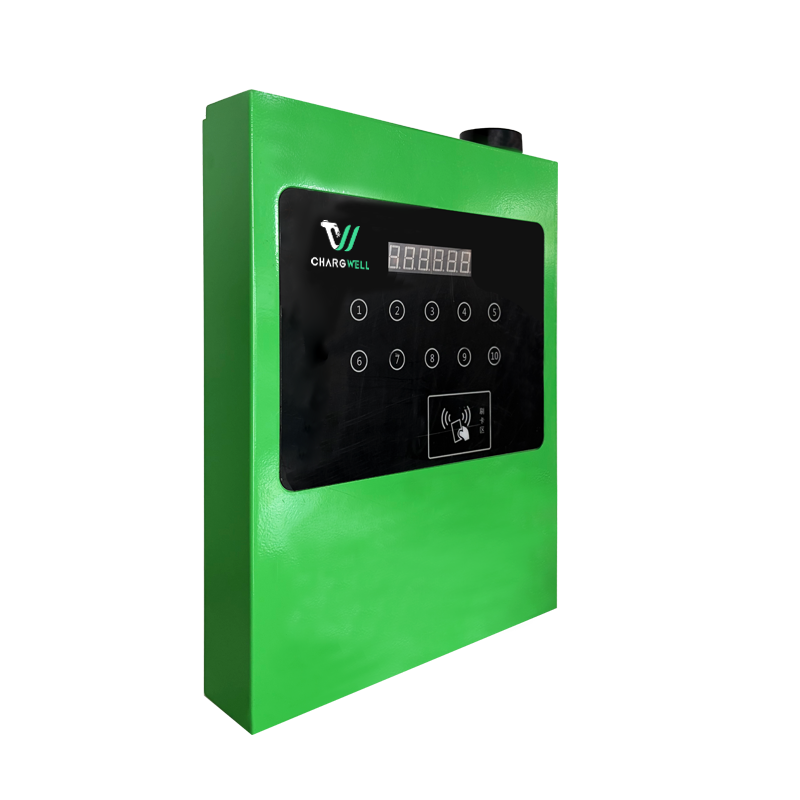

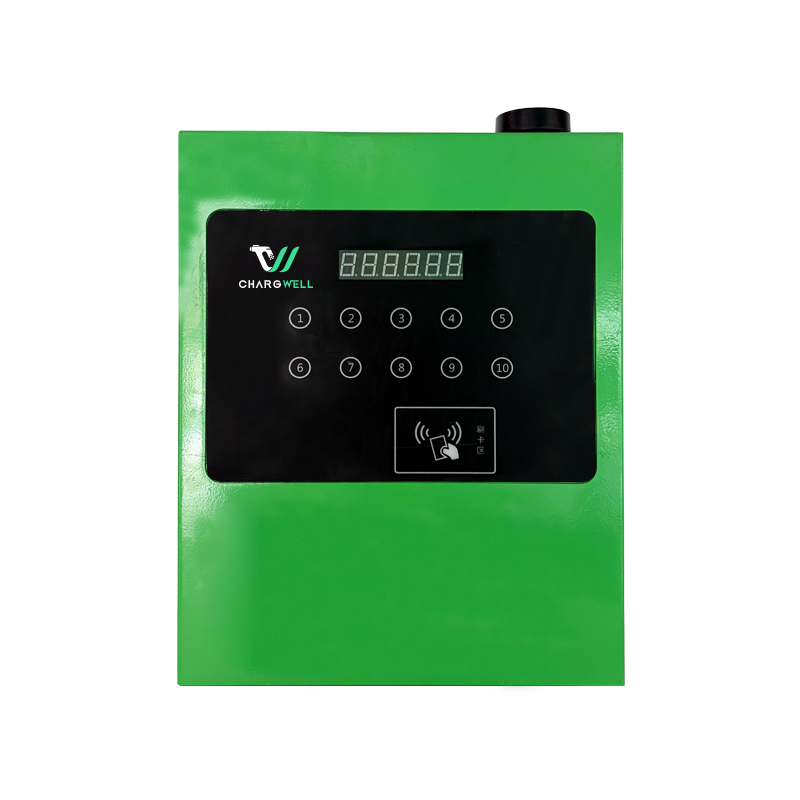

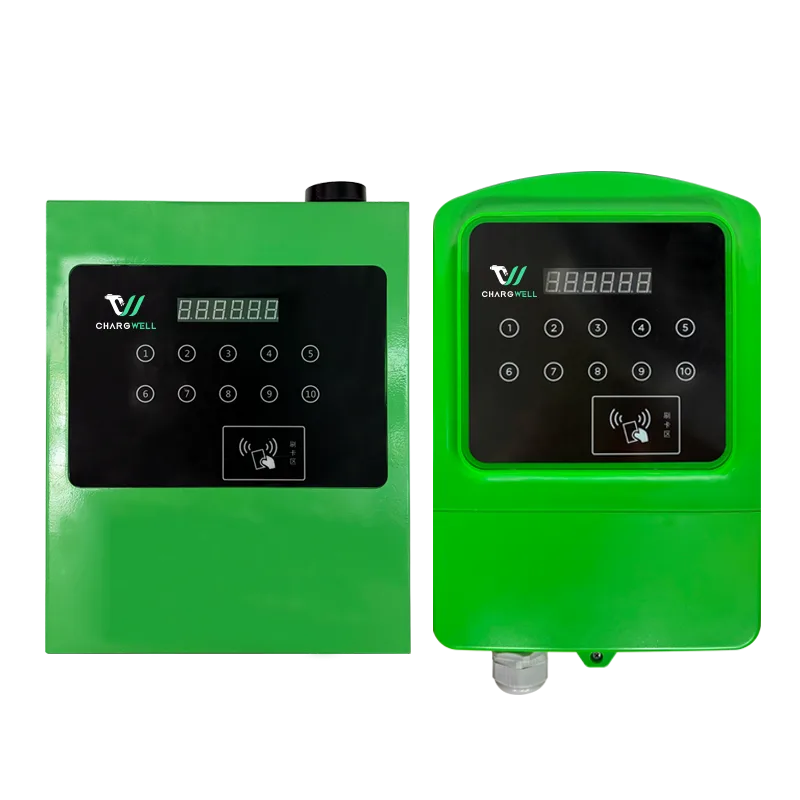

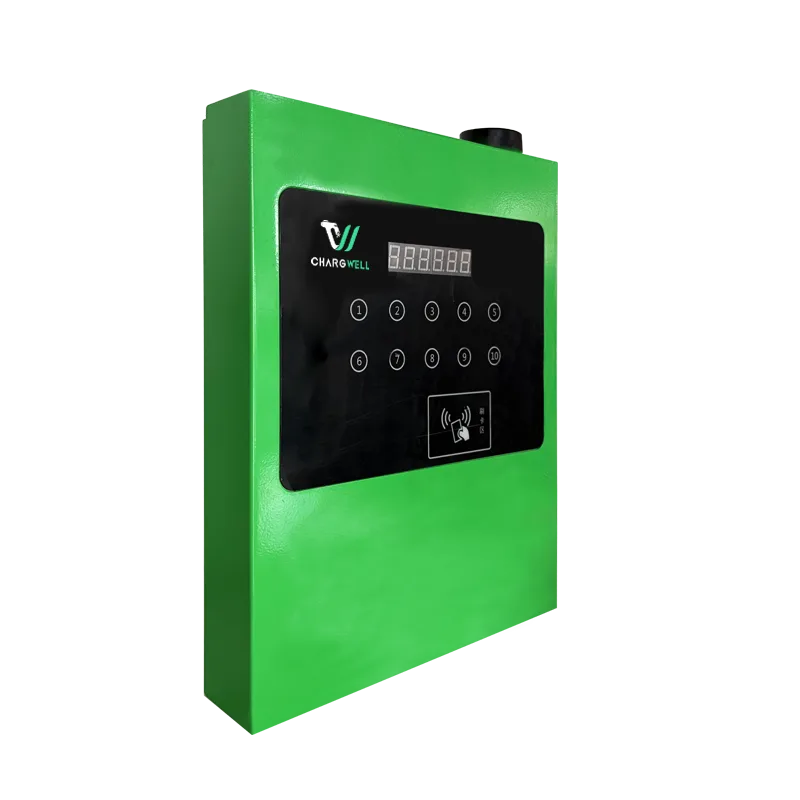

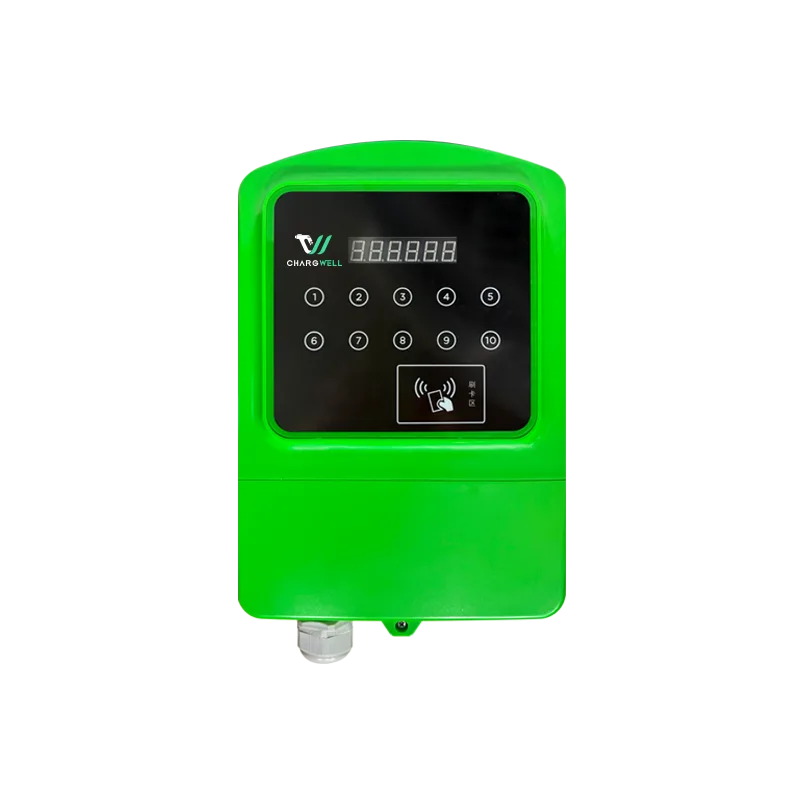

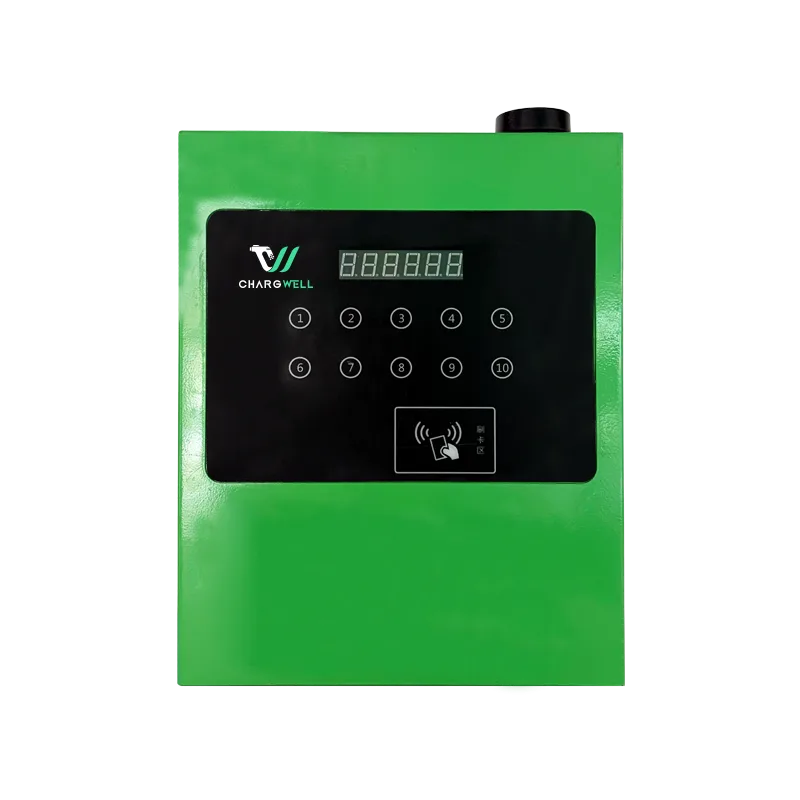

| Product Name | AC 10-Channel Smart Charging Pile (Plastic / Sheet Metal Housing Version) |
| Model No. | AC-BOAN101-P / AC-BIAN101 |
| Dimensions | 240 × 365 × 73mm / 263 × 335 × 54mm |
| Payment Methods | Card Swipe / WeChat Pay / Alipay |
| Housing Material | Plastic or sheet metal housing with spray coating process |
| Operating Voltage | 160VAC–280VAC |
| Output Ports | 10 Channels |
| Max Total Load Power | 8000W |
| Max Output Power per Single Port | 900W |
| Operating Temperature Range | -20°C ~ 50°C |
| Operating Humidity Range | Relative Humidity ≤95% |
| Waterproof Rating | IP55 |
| Flame Retardant Grade | Flame retardant grade V0 |
| Earth Leakage Protection Current | 30mA |
| Short-Circuit Protection Current | 40A |
| Overload Protection Parameters | 4A load per single port; total load 36A |
| Temperature Monitoring & Alarm Rules | Report every 30 minutes; immediate alarm if temperature change exceeds 2°C; real-time alarm when temperature over 60°C; stop all charging tasks immediately when temperature exceeds 85°C |
| Under-Voltage Protection | 160VAC |
| Over-Voltage Protection | 280VAC |
| Network Connectivity | 4G Full Netcom |
Suitable for long rain shelters and spacious sites requiring installation of multiple charging units
