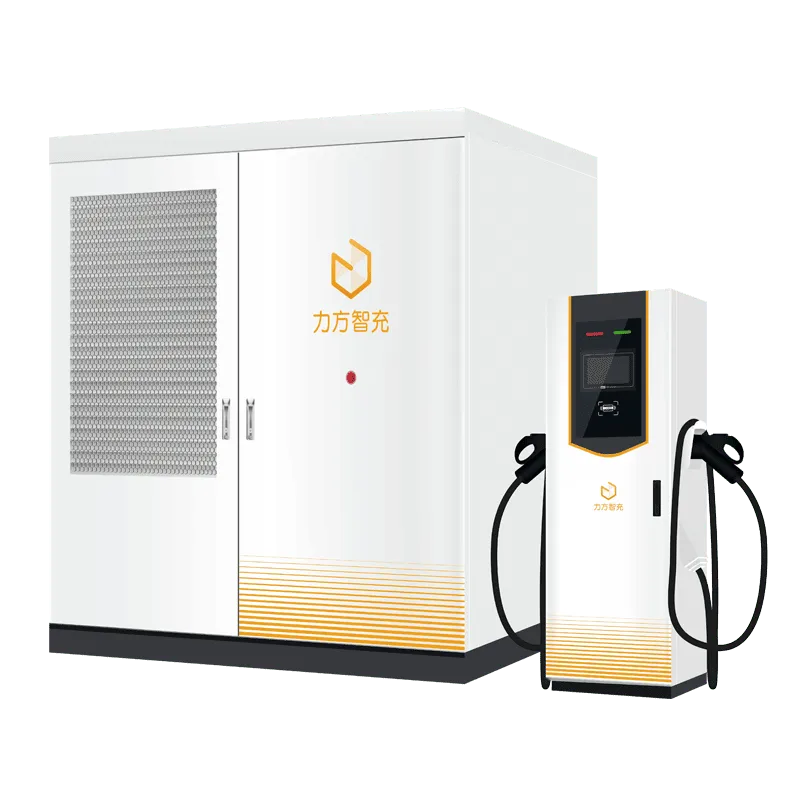

Split DC Fast Charger with a 600KW Charging Pile

The LF600 split DC Charger is a modular type GB/T standard charging pile from ChargWell, supporting up to 5 charging terminals with 10 connectors in total, capable of delivering a maximum power of 600 kW. It adopts a power pool-sharing charging mode to maximize module utilization and flexible allocation of charging efficiency. It features multiple protection functions to ensure charging safety. It can also be designed as a liquid-cooled ultra-fast charging pile. It supports flexible charging distribution and intelligently distributes each power module to maximize operational benefits. It supports RFID and APP operations, and the display also comes with an intuitive billing system so users can easily pay for charging.

Wholesale Inquiry

ADVANTAGES

Easy to install and maintain

IP55&IK10 for outdoor installation

5m charging cable(7m optional)

RFID/APP and POS optional

High power, multi-channel DC output
for higher efficiency

Full matrix scheduling, flexible charging, maximum single-port output of 250A;

Ultra-high compatibility, adaptable for charging various types of vehicles

Full vehicle compatibility, capable of charging all models above 50V, flexible configuration to meet different user needs.

Ultra-durable and weather-resistant with multiple safety upgrades

Features multiple protection measures such as overcurrent, overvoltage, and leakage protection to ensure safe charging.

Excellent investment, more cost-effective for operating stations

Achieves higher module utilization through power pool sharing, automatic module power optimization, and an overall machine efficiency of ≥94%.

SPECIFICATION DETAILS

Model	LF480/LF600	Input Voltage	400Vac± 10%, 50/60Hz, 3Phase+N+PE
Output Voltage	150~1000Vdc	Output Power	480kW/600kW
Output Current	250A+250A(MAX)	Stand-by Power	＜50W
Efficiency	≥95%	Protection	Short circuit, Overload, Over temperature, Over current, Over and under voltage, Leakage, Insulation, Lightning protection, Surge, Static electricity, Withstand voltage, Grounding
Connectivity	Ethernet&4G&WiFi	Authorization	APP&RFID
Interface	7-inch touch screen, LED indicator, Emergency stop button	Protocol	OCPP 1.6J
Cooling	Forced-air cooling	Cable Length	≥5m(customizable)
